India's Long Range Anti-Ship Missile (LR-AShM): Development, Specifications, and Strategic Impact
India's Long Range Anti-Ship Missile (LR-AShM), also known as the Long Range Anti-Ship Hypersonic Missile, is a state-of-the-art boost-glide hypersonic glide vehicle developed by the Defence Research and Development Organisation (DRDO) primarily for the Indian Navy. It's engineered to target significant maritime assets such as aircraft carriers and destroyers over long distances while avoiding detection through its high speed, maneuverability, and low-altitude terminal flight.
This missile is compatible with coastal defense batteries and is deployed using shore-based transporter-erector-launchers (TELs). There are ongoing developments for ship-launched variants and potential land-attack roles for the Army, with adaptations for both air and underwater platforms. The missile aims to boost India's anti-access/area-denial (A2/AD) capabilities in the Indian Ocean Region (IOR), addressing growing naval challenges from China and Pakistan.
Development History
India's exploration into hypersonic technology dates back to a 2007 call by Dr. A.P.J. Abdul Kalam to develop such systems. Work on scramjets and hypersonic vehicles commenced in 2008, initially hampered by financial constraints but propelled forward by computational fluid dynamics research and the establishment of the Hypersonic Wind Tunnel (HWT) in Hyderabad, operational since 2019. Other facilities include IIT Kanpur's Hypervelocity Expansion Tunnel and several national hypersonic wind tunnels.
The Hypersonic Technology Demonstrator Vehicle (HSTDV) test in 2020 validated crucial technologies like scramjet combustion. The LR-AShM project began around 2017–2018 at DRDO's Advanced Systems Laboratory in Hyderabad, with its design finalized by 2022 for a system capable of a 1,500 km range. Multiple DRDO labs and industry partners, including Bharat Dynamics, are involved in its development, utilizing components from programs like the K-15 (Sagarika) SLBM and BrahMos missile. The missile was first mentioned in the Ministry of Defence's 2023 Year End Review.
Key figures in the project include Project Director A. Prasad Goud, with aerodynamic testing carried out at facilities including the National Aerospace Laboratories' trisonic wind tunnel.
Design and Technical Specifications
The LR-AShM employs a boost-glide system, using a two-stage solid-fuel rocket booster to reach hypersonic speeds before deploying a delta-winged or straked HGV payload for atmospheric glide and maneuvers. It's described as having quasi-ballistic properties with maneuvers such as "skip-glide" for enhanced evasion.
| Specification | Details |
|---|---|
| Length | Approximately 14 meters (46 feet) |
| Diameter | About 1.4 meters (4.6 feet) |
| Weight | Less than 20 tons (<44,000 pounds) |
| Range | Demonstrated/operational >1,500 km (930 miles); future variants up to 3,500 km |
| Speed | Peak up to Mach 10 (~12,000 km/h); average glide ~Mach 5 |
| Propulsion | Two-stage solid propellant rocket motor (booster + sustainer); cold-launched from hermetically sealed canister with attitude control thrusters |
| Trajectory | Ballistic boost phase, transitioning to glide with complex maneuvers, low-altitude terminal run-in; high aerodynamic efficiency with lift-generating surfaces (cruciform mid-body, triangular aft fins) |
| Thermal Protection | Composite materials and shielding to withstand >2,000°C |
| Guidance | Mid-course inertial navigation system (INS) + multi-GNSS; terminal active radar homing (ARH) with X-band synthetic aperture radar monopulse seeker (derived from BrahMos/ECIL tech) for precision against moving targets |
| Warhead | Conventional (various payloads possible); kinetic energy impact plus explosive effect |
| Launch Platform | 12x12 wheeled TEL truck (single missile per canister); ship-launched variant in development |
The missile is capable of executing terminal maneuvers to ensure precision and survivability, equipped with onboard electronic counter-countermeasures (ECCM) and real-time trajectory adjustments.
Flight Tests and Validation
| Test | Details |
|---|---|
| First Test (2023) | Conducted from the Integrated Test Range, validating basic capabilities. |
| Second Test (November 16, 2024) | Successful flight from Dr. APJ Abdul Kalam Island. The missile (marked LR-02) demonstrated terminal maneuvers, high accuracy, and hypersonic performance. An area warning extended to ~1,700 km. It confirmed the delta-wing HGV configuration's advantages over pure quasi-ballistic paths. |
Following these tests, the system moved towards limited serial production by late 2025, with further refinements expected before full operational evaluation.
Public Unveiling

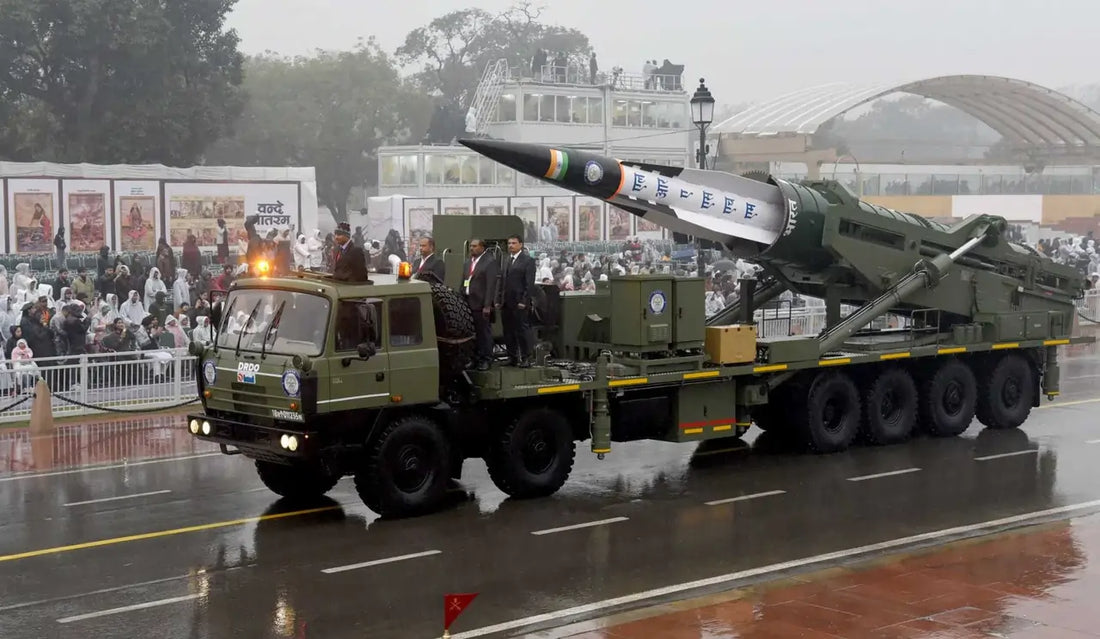

The LR-AShM was publicly showcased on January 26, 2026, during India's 77th Republic Day parade in New Delhi. Displayed on its mobile TEL, it was featured alongside other DRDO systems, emphasizing advancements in indigenous hypersonic technology. Officials highlighted it as a significant achievement for coastal strike and maritime deterrence.
Operational Capabilities and Strategic Importance
The LR-AShM allows rapid engagement of static or dynamic naval targets, including carriers and large vessels, over 1,500 km in about 15 minutes. Its design ensures low detectability through its speed, altitude profile, and maneuvering capabilities, fulfilling sea-denial roles in the IOR by restricting adversary access to crucial waters.
Complementing systems like the BrahMos, it bridges gaps for conventional long-range strikes, offering advantages in range, speed, and evasion capabilities over potential adversaries such as China's DF-ZF/YJ-20 and Pakistan's SMASH developments.
The missile is expected to be inducted into the Indian Navy around 2029, initially for shore and ship-based operations, with potential extensions to other services and possibly nuclear-capable payloads, bolstering India's strategic posture.
Future Developments
Future plans for the LR-AShM include:
- Extended-range versions reaching up to 3,500 km
- Variants for ship, air, and submarine launches
- Enhanced warheads and sensors
- Full operational clearance following additional trials, anticipated 2–3 years after the 2024 test
This missile positions India among a select group of nations possessing operational or near-operational long-range hypersonic anti-ship capabilities, marking a significant advancement in indigenous defense technology.
